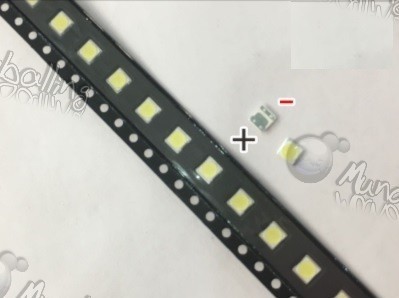

Led 3535 6V 2W Iluminación Trasera Televisión, Pack 10 Unidades

Led 3535 6V 2W Iluminación Trasera Televisión, Pack 10 Unidades

91204

Producto nuevo

Led 3535 6V 2W Iluminación Trasera Televisión, Pack 10 Unidades

Más detalles

Producto sin stock

$ 6.900 IVA incluido.

Añadir a la lista de deseos

  • Led 3535 Iluminación Trasera Televisión, Pack 10 Unidades 6V

    Especificaciones Técnicas

    • MODEL   NAME :   LATWT391RZLZK
    • Manufacturer  :   1G Innotek LED
    • Origin :  Korea
    • Package  Model:Loaded Quantity : 1900PCS  Per  Reel
    • Forward Current      (IF ):  500mA
    • Pulse Forward  Curren t1     (IFp):  800mA
    • Reverse  Current    (IR):  50mA
    • Reverse Voltage   (VR): 6V
    • Power Dissipation  (PD): 2W
    • Operatin  Tgemperature (Topr):   -40 -  +85 °C
    • Storage Temperature (Tstg):  -40  -  +100 °C
    • Soldering Temperature (Tsld):  Reflow Soldering:260 °C for 10secs
    • Hand Soldering:350 °C for 3secs
    • Junctio Temperature   (Tj ):  162°C
    • Forward  Voltage   (VF):   6.0-6.8V  (250mA)
    • Luminous Flux    (LM):    150lm   (250mA)
    • Luminous  Intensity  ( IV ) :  cd  (250mA)
    • Wavelength    (nm) :  -nm       mA
    • CIE : x=0.255   y=0.223   (250mA)
    • Color Correlated Temperature    (CCT):
    • Viewing angle: 120°
    • Lead Frame Type LED Package:  3.5×3.5×0.65 mm    L×W×H    d=mm
